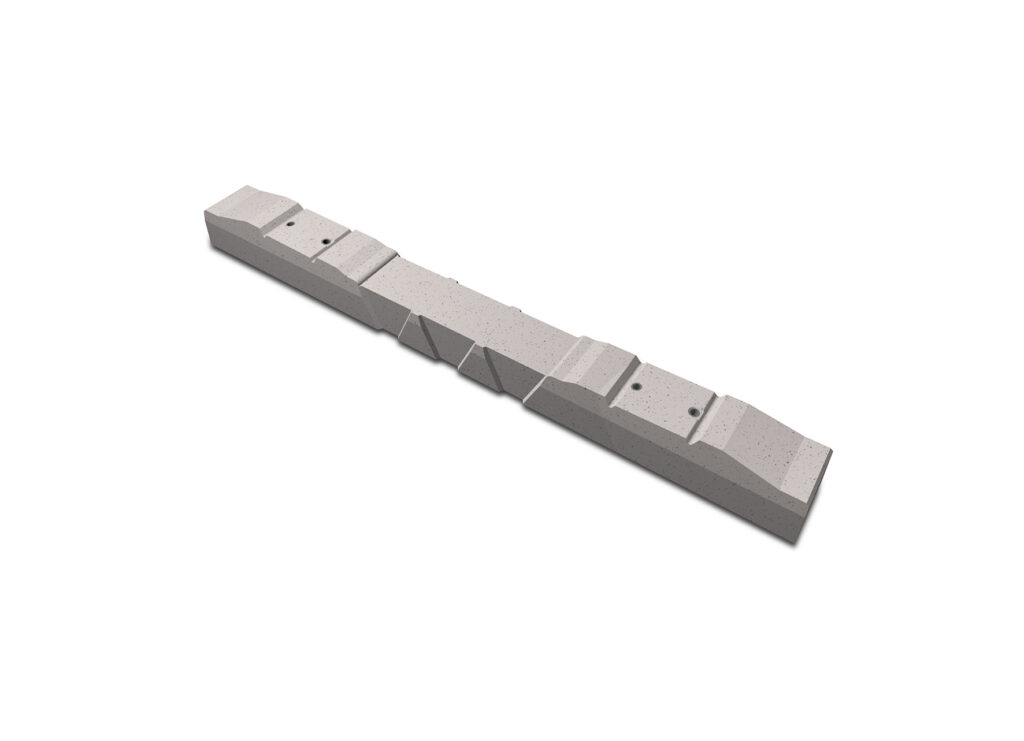

The UTT 21 tie was specifically developed to meet the demanding requirements of Urban Transit in North America.
It can be equipped with various rail fastening systems and adapted to different rail profiles and rail inclinations.
Thanks to its reduced number of variants and high durability, it offers a particularly cost-effective solution for Urban Transit.
Compliant with relevant standards: Designed in accordance with AREMA Manual Chapter 30 and TCRP Report 115, meeting the stringent requirements for transit ties
Universal compatibility: Compatible with all modern rail fastening systems and rail types
Standardised design: A single tie design for different systems simplifies planning and installation
Stable and safe: Optimised rail inclinations of 1:40 or 1:20 and a special geometry increase lateral track resistance; optionally available with derailment protection
Flexible applications: Can accommodate a third rail for power supply; optionally available with under-tie pads for environmental and vibration protection
Standard application | Track tie |
System type | Ballasted track for Urban Transit |
Maximum speed | 95 km/h* |
Axle load | 25 metric tons* |
Track gauge | 1,435 mm |
Length | 2,515 mm |
Width | 254 mm |
Sleeper height | 211 mm |
Weight | 262 kg |
Approvals | Tested in accordance with AREMA Chapter 30 |
Note | Other combinations of speed and axle load can be assessed upon request. |
