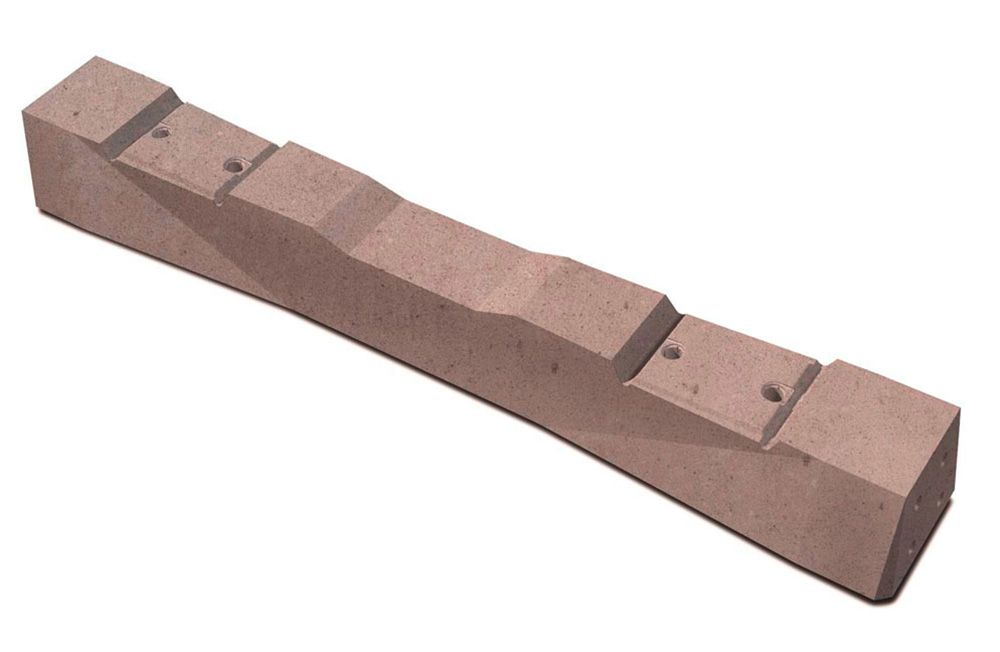

The LIS and TBS sleeper types are standard sleepers for tram and industrial railway applications with axle loads of up to 18 metric tons. They are manufactured in lengths of 1.8 m for narrow-gauge applications and 2.2 m for standard-gauge applications.
In addition to being adapted to the rail profile, rail inclination and rail fastening system, the sleepers can be manufactured with raised rail support points. This provides additional space for the grass substrate in green track applications, for example.
Compared with conventional ballasted track, this allows an attractive year-round appearance to be achieved using standard vegetation, with only minimal additional measures such as rail insulation.
Ready for installation: Sleepers are supplied with pre-assembled rail fastening systems for easier handling
High load-bearing capacity: Suitable for axle loads of up to 18 metric tons and speeds of up to 100 km/h
Flexible adaptation: Customisable for different applications and customer requirements
Wide range of configurations: Available with check rails, guard rails or conductor rails, as well as in multi-gauge configurations
Short lead times: Available at short notice for all common rail profiles and rail fastening systems
Optimised track elasticity: Can be fitted with rail pads and under-sleeper pads to accommodate higher loads
Special green track design: Raised rail support points for specific application requirements
